为论文配图而生的中文 Prompt 库
精选中文学术 prompt：研究框架图、技术路线图、机制示意图、统计图。一键复制、一键试用。
60+ Prompts
8 Categories
3 Languages
7 个 Prompt

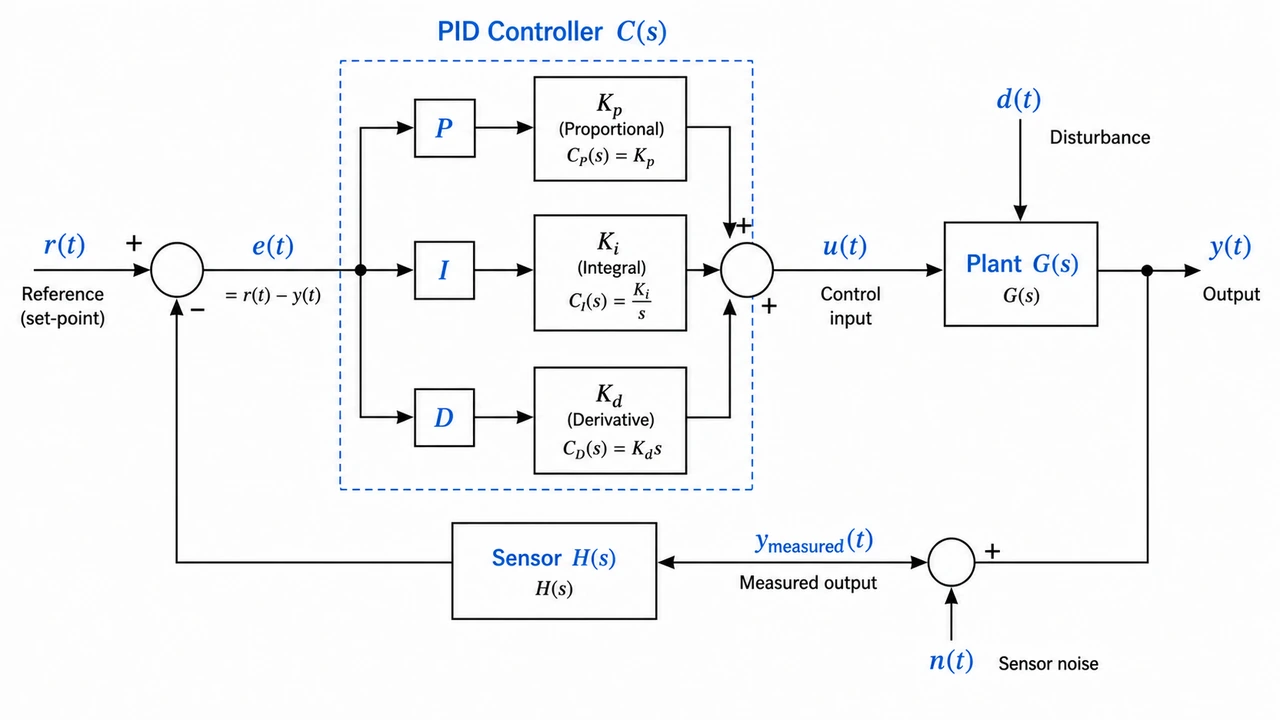

PID Control Loop
Classic feedback control loop with set-point, error, controller, plant, sensor and disturbance.

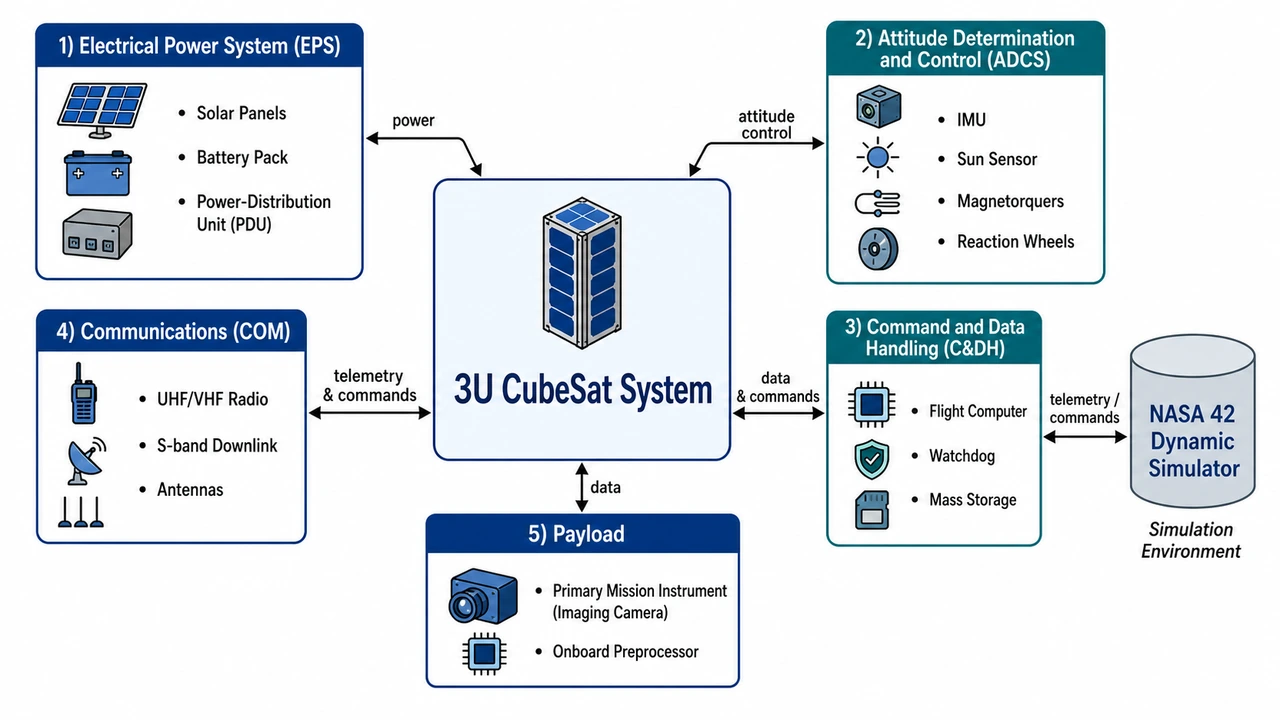

3U CubeSat System Architecture
Block diagram of CubeSat subsystems with simulation environment integration.

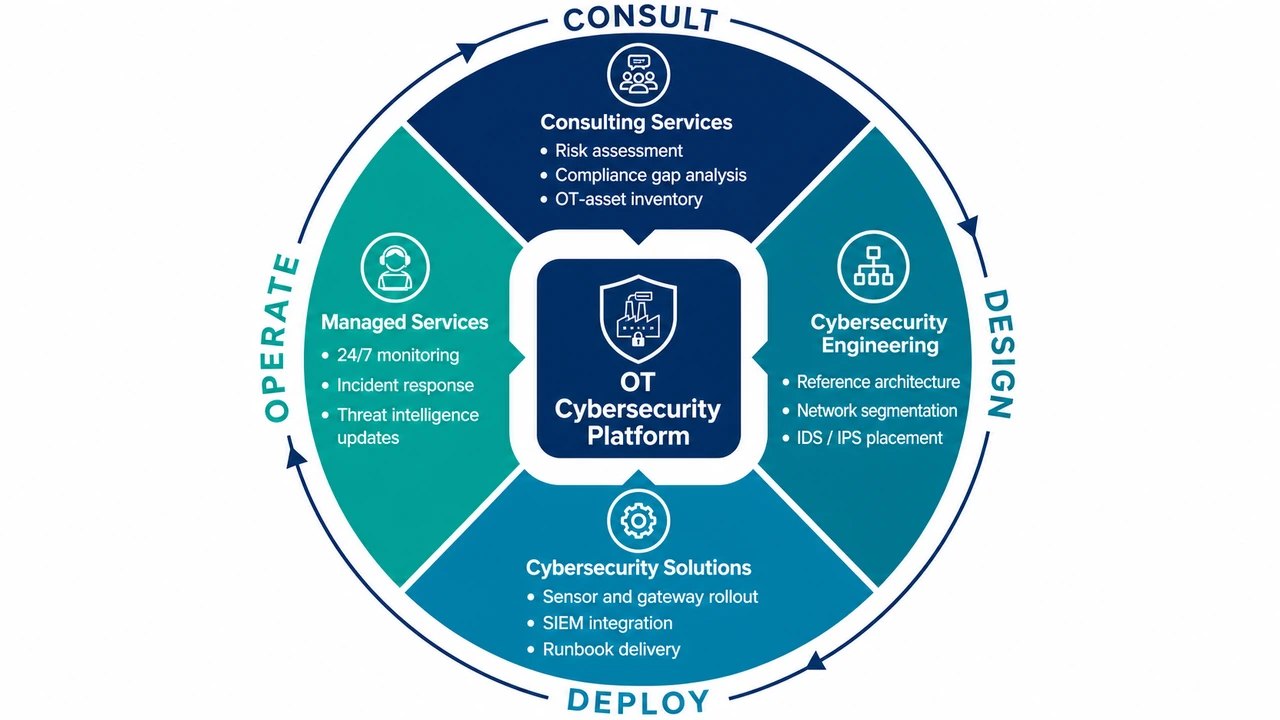

OT Cybersecurity Service Lifecycle
A circular four-phase service lifecycle around an OT cybersecurity platform.

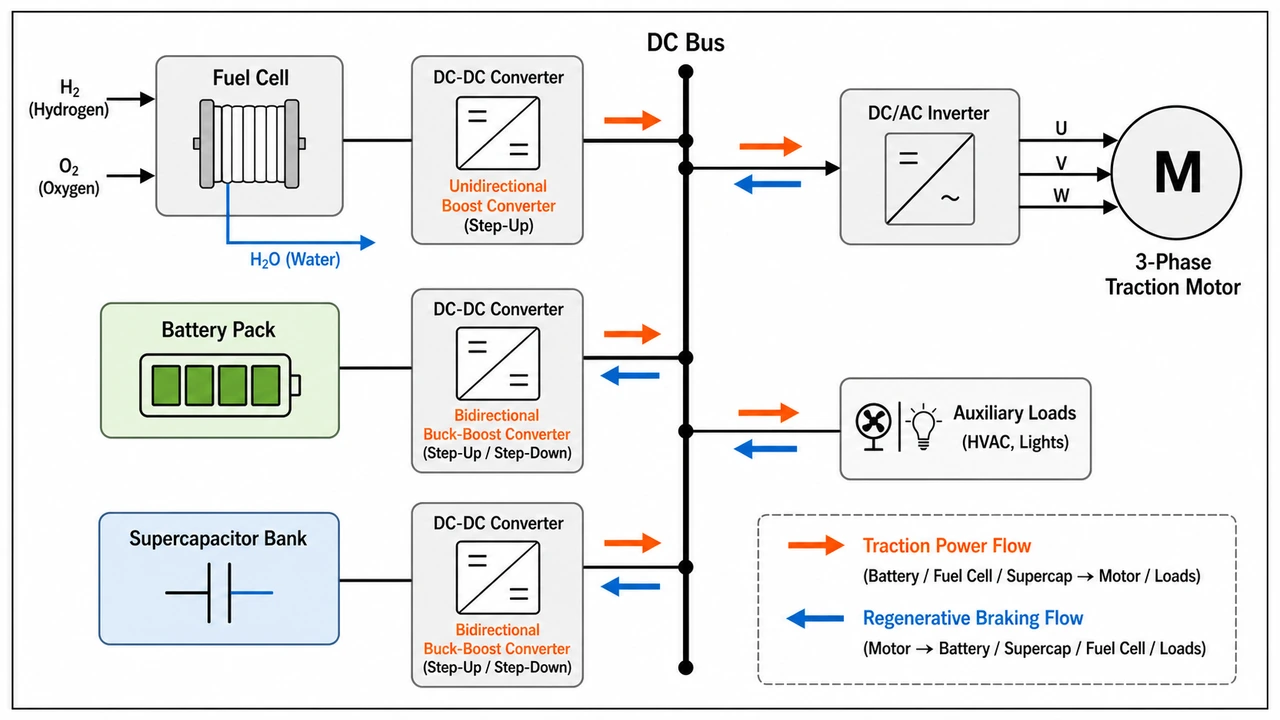

Hybrid Energy Storage System Schematic
EV power-architecture diagram with fuel cell, battery, and supercapacitor through DC-DC converters.

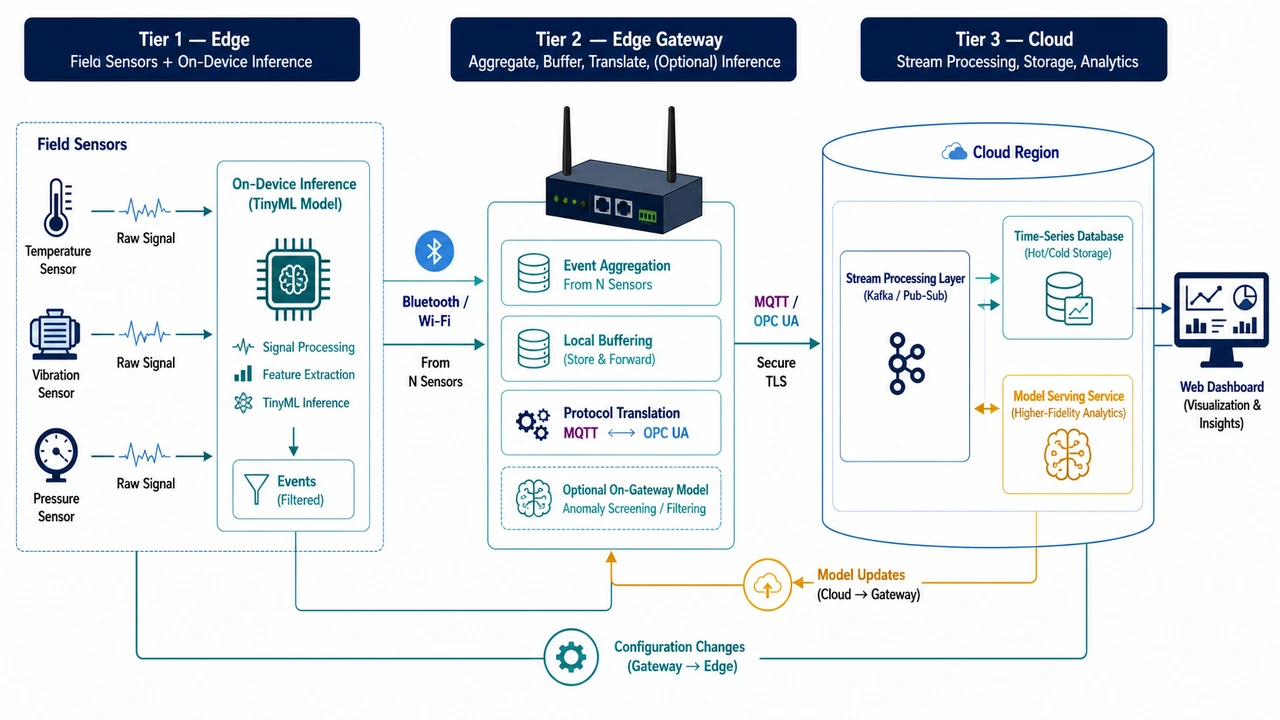

IoT Sensor → Edge → Cloud Pipeline
Three-tier IoT data path with sensors at the edge, gateway aggregation, and cloud analytics.

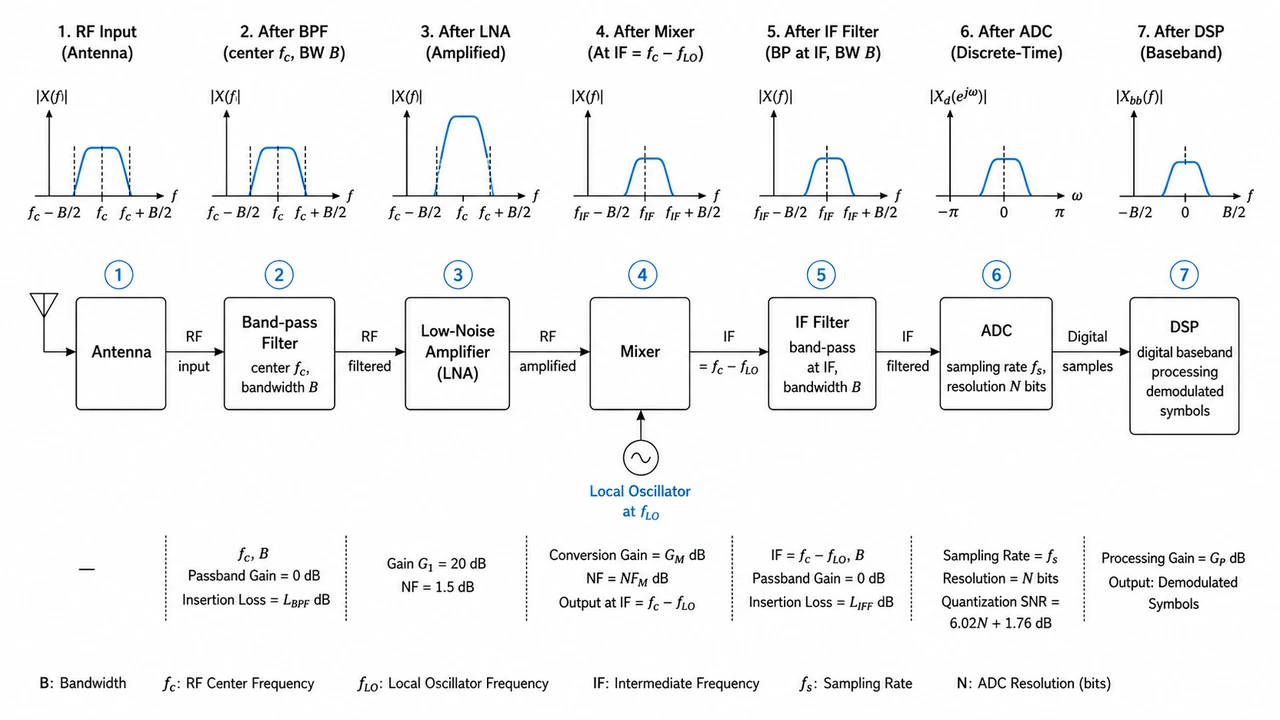

RF Receiver Signal Chain
Antenna → LNA → mixer → IF filter → ADC → DSP, with annotated gains and frequencies.

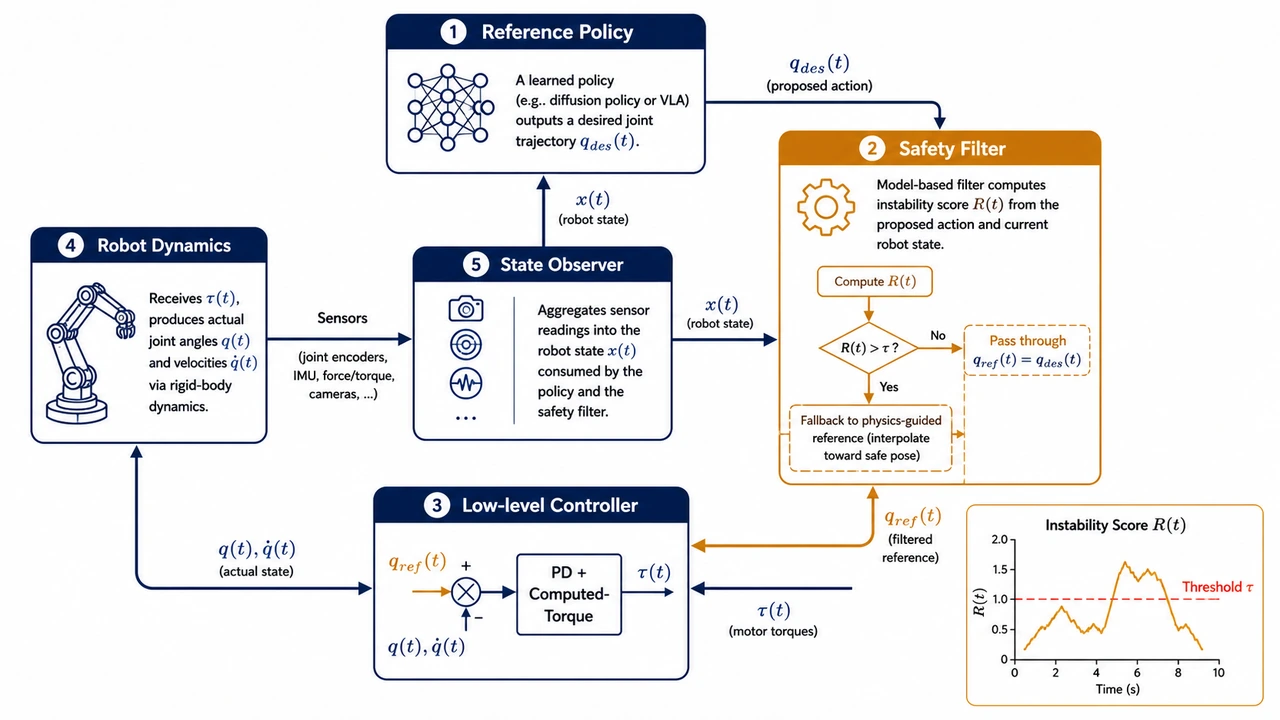

Robotics Motion-Control Loop with Safety Layer
Reference policy + low-level controller + robot dynamics + safety filter, with stability indicator.
如何写出高质量 Prompt
评分高的 prompt 共享四个要素：先点目标、再列要素、定布局、最后定风格。
1. 目标
一句话说清要画什么。控制在 25 字以内。
2. 要素
用 bullet 列出要包含的模块、阶段、数据系列或分子，模型会按 prompt 原文复现标签。
3. 布局
明确选一个朝向（左到右、上到下、2x2 网格、辐射状），不要混合。
4. 风格
指定调色板、字体、目标期刊，以及图生图时的保留规则。
